MOPAR PERFORMANCE
BRAKE PARTS



MASTER CYLINDER ASSEMBLIES

Assembly Kit (P5249270) features a 15/16" bore diameter and a 1.42" stroke for the highest volume fluid displacement while maintaining proper pressure. Kit (P5249271) features a larger bore diameter for an increased pedal feel.

P5249270

Master Cylinder Assembly -- 15/16" Bore, 1.30" Displacement, 63% Front/37% Rear, Under 2800 lbs.

$ 129.95

P5249271

Master Cylinder Assembly -- 1 1/32" Bore, 1.02" Displacement, 69% Front/31% Rear, Over 2800 lbs.

$ 129.95





STAINLESS MASTER CYLINDER HEAT SHIELD

Master Cylinder Heat Shield prevents heat from exhaust header or exhaust manifolds from boiling and degrading brake fluid — perfect for Big Block, A-body conversions.

P4510634

Stainless Master Cylinder Heat Shield (Big Block A-Body)

$ 31.95





MASTER CYLINDER ADAPTOR

This Master Cylinder Adapter converts from 4-stud to 2-stud attaching style. For use with Mopar Performance Master Cylinder Assemblies (P5249270 and P5249271) and Brake Cylinder Pushrod Package (P5249316AB).

P5249315

Master Cylinder Adapter

$ 35.95





OFFSET MASTER CYLINDER ADAPTOR

Offset Master Cylinder Adapter moves master cylinder away from engine for added clearance with Hemi® or 440 engine valve covers. Designed specifically for 1968 Hemi® A-body cars.

P5249717

Offset Master Cylinder Adapter (1969 Hemi® A-Body)

$ 104.95





ADJUSTABLE BRAKE PUSHRODS

Adjustable Brake Pushrod for use with lightweight master cylinders (P5249270 and P5249271).

P4510640

Adjustable Brake Pushrod

$ 57.95





BRAKE CYLINDER PUSHROD PACKAGE

Brake Cylinder Pushrod Package contains pushrod assembly, bolt, nut, washer, adhesive, roll pin and instruction sheet. For use with Mopar Performance Master Cylinder Assemblies (P5249270 and P5249271) and Master Cylinder Adapter (P5249315).

P5249316AB

Brake Cylinder Pushrod Package

$ 70.95





LIGHTWEIGHT BRAKE PROPORTIONING VALVE

This valve is made from lightweight billet aluminum. Perfect for all hydraulic brake applications, it easily adjusts. For diagonally split brakes, install one valve in each rear brake line (do not change brake system to front-to-rear split).

P5249088

Lightweight Brake Proportioning Valve

$ 69.95





Chrome Brake Master Cylinder Covers

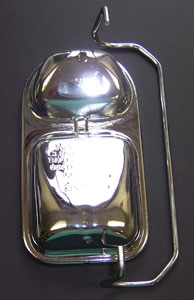

CHROME BRAKE MASTER CYLINDER COVER

Dress up under your hood with a chrome master cylinder cover. Includes rubber gasket and chrome clamp.

P4120225

6-1/8" X 3-1/4" Cylinder Cover

$ 39.95
DISC - Very limited supply!
