DODGE & PLYMOUTH
REAREND PARTS

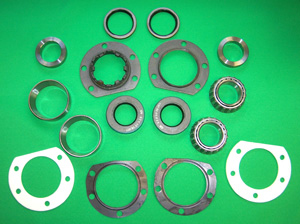

REAREND AXLE REPAIR PACKAGES
For cars with 8-3/4 rearends from 1965 to 1974, and Dana 60 rearends
from 1966 to 1973. (Includes 2 axle bearings & races, all seals & gaskets, flanges, collars and adjuster)
Our one kit does both sides, unlike others on the market!


RE-3395A



RE-3395A

with (A) adjuster flange (as shown in illustration above)

$ 399.95/kit



RE-3395WO

without (A) adjuster flange (as shown in above minus adjuster flange)

$ 299.95/kit

REAREND COMPONENTS



RE-2343

AXLE BEARING & RACE - All 8-3/4 And Dana 60 rear ends
(this bearing will fit either left or right)

$ 44.95 ea.

  RE-2343AFA AXLE BEARING ADJUSTER FLANGE - All 8-3/4 & Dana Rearends
(allows you to adjust the axle end play)
$ 299.95 ea.
Axle Bearing Flange   RE-2343AFF AXLE BEARING FIXED FLANGE - All 8-3/4 & Dana Rearends
(mate to the adjuster flange above; fixed; does not adjust)
$ 189.95 ea.
Pictured above two rows  RE-2343AFSET Set of both flanges above
(RE-2343AFA & RE-2343AFF)
$ 349.95



RE-4410

AXLE TUBE SEAL - fits 8-3/4 & 9-3/4 rear ends
(1 per side)

$ 24.95 ea.

RE-LOCK

LOCK TAB & LOCKING NUT - for axle flange adjusting plate ("A" in illustration # RE-3395A above) This is the lock tab that stops the axle flange nut from turning (not included in RE-3395A or RE-3395WO above) - fits 8-3/4 & 9-3/4 rearends

$ 33.95 ea.



RE-1309

AXLE SEAL - fits 8-3/4 & Dana 60 rearends (1 per side required)

$ 24.95 ea.

  RE-1309B

AXLE SEAL KIT - fits 8-3/4 & Dana 60 rearends (all seals are included for removal of axle; includes RE-791; 2 kits per car needed)

$ 29.95/kit



RE-791

FOAM GASKET - fits all 8-3/4 & Dana rearends (goes against the outside of the rearend backer plate; 2 required per car)

$ 6.95 ea.



RE-790

STEEL GASKET - fits all 8-3/4 & Dana rearends (goes behind rearend backer plate & housing; 2 required per car; use with RE-791 above)

$9.95 ea.

RE-1127

Rear end Axle Brass VENT SCREW - All Make & Models

$ 49.95 ea.

Rear Axle Bumper

FW-841

Rear Axle BUMPER - 71-72 B Body & 70-74 E Body -  All with Dana 60 & 8-3/4 rearends (exc. AAR & TA) (mounts above axle on subframe rails; triangular shaped bumper)

$ 129.95/pr.



FW-934

REAR AXLE BUMPER - 66-70 B Body - All w/ 8-3/4 & Dana 60 rearends

$ 129.95/pr.



RE-999A

AXLE HOLD IN STUDS - All 8-1/4, 8-3/4 & Dana rear ends (these are the studs that hold the axle to the rear end housing; 5 per side needed)

$ 12.50 ea.



RE-999

CARRIER NUT - All 8-3/4 rear end chucks (holds chuck in the rear end housing; 10 required)

$ 3.50 ea.

BRAKE BACKER PLATE NUT for RE-999A studs above (these are the nuts that thread onto the above studs to hold axle in housing; 5 per side needed)

8-3/4 Rearend carrier gasket

RE-1308

Rearend Carrier GASKET - All 8-3/4 rear ends (large, round gasket; fits between the third member & rear end housing)

$ 14.50 ea.

Dana Rearend Cover gasket

RE-229

Rearend Cover GASKET - 66-71 Dana 60 rear ends

$ 14.50 ea.



RE-1088

Rearend COVER & GASKET PKG - 66-72 Dana 60 rear ends

$ 89.95 ea.



RE-3229

Axle Cover BOLT - cars with Dana 60 rear ends (special bolt that holds rear end cover to housing; 10 per car)

$ 3.95 ea.



RE-3229SET

Set of 10 above

$ 29.95/set

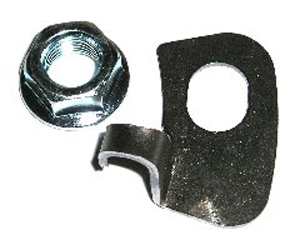

AXLE ADJUSTING NUT LOCKING PAWL

This locking pawl and flanged nut is used on the right side axle bearing adjusters of 8 3/4" and 9 3/4" differentials.   The pawl secures the axle end play adjusting nut once proper bearing play is established.  You don't want to be without this part on your car!  Chrysler part number 2467166. One required per vehicle.



HF-0834

For 8 3/4" and 9 3/4" differentials

$ 26.95





POSI REAR END SURE GRIP DIFFERENTIAL ASSEMBLIES

These assemblies are complete for high-performance applications. Designed for gear ratios of 2.76:1 and higher.

P4876118

Sure-Grip Differential Assembly (8 3/4" Axles)

$ 799.95

P4529273

Sure-Grip Differential Assembly (to 1995 8 1/4" Axles)

$ 314.95



REAR AXLE BRASS BLOCKS

Mount on rear end axle tube housing; held on by RE-1127 as pictured above.

RE-RSBB05

L Block on Rear Axle - fits 72-76 All A, B & E Body

$ 49.95 ea.



RE-RSBB09

Y Block on Rear Axle - Fits all 62-71 All A, B & E Body

$ 49.95 ea.





REAR AXLE I.D. TAGS
Exact copy of metal tag attached to the differential housing or Dana cover with gear ratio.

8-3/4" AXLE

FW-AR323

3.23

$ 33.95 ea.

FW-AR355

3.55

$ 33.95 ea.

FW-AR391

3.91

$ 33.95 ea.

DANA 60 AXLE

FW-AR354

3.54

$ 33.95 ea.

FW-AR410

4.10

$ 33.95 ea.

POSI GRIP LUBE TAGS
Exact copy of metal tag attached to the rearend housing or Dna cover to denote special lubricant.

FW-SG8

68-Down 8-3/4

$ 34.95 ea.

FW-SGD

All Dana rearends & 69-Up
8-3/4 rearends

$ 34.95 ea.

PAPER AXLE TAGS
This is the paper band that wraps around the axle tube, usually between the left spring pad and the brake backing plate. It contains the seven digit part number in 1/2" red numerals. It can be verified by the "axle" designation on the broadcast sheet (the last 3 numbers will be the same). The fender tag can also be used by identifying the "axle package" code, type of trans, rearend gears, and sometimes the size of the rear brakes. The following chart is meant only as a guide and should only be used as a guide.
ALL TAGS $ 14.95 ea.
Order by original part number below.

Part #

Broadcast Sheet #

Fender

Application

Rearend



2931644

644

A32, A34

69 B BODY

4.10 Dana



3432084

084

A31

70 B BODY

4.10 Dana

 4 SPD

3432083

083

A33

70 B BODY

3.54 Dana

10-1/2" REAR BRAKES

3432082

082

A33

70 B BODY

3.54 Dana

11" REAR BRAKES

3432081

081

A32

70 E BODY

4.10 Dana

AUTO

3432079

079

A33

70 E BODY

3.54 Dana

4 SPD

3507026

026

A34

71 E BODY

4.10 Dana

4 SPD

3507024

024

A33

71 E BODY

3.54 Dana

4 SPD





ADJUSTABLE PINION SNUBBER
Unit fits to the center front of the rear axle housing. It helps control axle wind-up through adjustability of height to the floor pan, depending on individual requirement.

P3690182

All w/ 8-3/4" Axle

$ 79.95

P3690181

All w/ 9-3/4" Axle

$ 79.95

COMPONENTS

RE-6629

Pinion Snubber BUMPER - 66-74 A, B & E Body w/ pinion snubber

$ 29.95





UNIVERSAL JOINTS

RE-2481

All 64-Up w/ Small Yoke (7260)
(2-1/8") (internal snap ring type)

3-1/4" X 3-1/4"

$ 39.95 ea.

RE-2492

All 66-Up w/ Large Yoke (7290)
(2-5/8") (except 66-67 440 or Hemi cars; internal snap ring type)

3-5/8" X 3-5/8"

$ 39.95 ea.



RE-5222

Driveshaft Conversion Universal Joint (allows you to use large universal drive shaft with small rear end yoke; or, small universal drive shaft with large rear end yoke)

3-1/4" X 3-5/8"

$ 69.95 ea.

COMPONENTS

RE-794

HOLD DOWN STRAP for large joint rear end universal joint



$ 29.95 ea.

RE-3802

HOLD DOWN STRAP for small joint rear end universal joint



$ 39.95/set of 2





YOKE CONVERSION KIT

P4120714AB

This yoke conversion allows you to convert your standard type strap assembly to the much stronger U bolt design on some Dana 60 rearends with large u joint (7290) and 29 spline (for Dana 60 only; does not fit 8-3/4" rearends) Includes yoke with u bolts and hardware.

$ 214.95/kit



REAREND YOKES



RE-1089

69-Up 8-3/4" Rearend (fine spline w/ large universal joint)

$ 169.00 ea.



RE-2687

68-Down 8-3/4" Rearend (coarse spline [10 tooth] with large universal joint)

$ 169.00 ea.

COMPONENTS



RE-849

YOKE NUT (rearend center of universal; holds rearend yoke to pinion gear)

$ 14.00 ea.



RE-850

LARGE WASHER (rearend center yoke; behind hold on nut)

$ 13.00 ea.



RE-815

YOKE BOLTS - FOR 8-3/4" & Dana rearends (special bolts with built on washer)

$ 8.95 ea.



RE-7216

PINION YOKE SEAL for 8-3/4 rearend yoke - 68-Down cars (for cars w/ 1-3/4" pinion diameter; 10 spline [coarse])

$ 39.95 ea.



RE-5126

PINION YOKE SEAL for 8-3/4 rearend yoke - 69-Up cars (for cars w/ 1-7/8" pinion diameter; 29 spline [fine])

$ 32.50 ea.

  RE-6808N

PINION YOKE SEAL for Dana 60 rearend yoke -
66-72 cars

$ 32.50 ea.





AXLE SHAFT THRUST SPACER KIT

HF-PTS834

HF-PTS834

These spacers fit into the pinion shaft and allow the correct adjusting end play of the rear axles. Fits all 8-3/4 rearends. Includes two spacers and roll pin.

$ 35.95 ea.
