COMPETITION LEAF SPRINGS - SUPER STOCK
The rear springs listed below have a 20" front segment and require a longer front spring hanger bracket for B-, E-, F-, J- and M-bodies (not included). Standard hanger brackets used on A-bodies.

P3412002 Competition Leaf Spring -- Right, 3000-3200 lbs (Modified Cars, 1968 Hemi® Super Stock A-Body) $ 119.95
P3412003 Competition Leaf Spring -- Left, 3000-3200 lb (Modified, Hemi SS A-Body, B-Body w/Relocated Shackle) $ 119.95
P3690454 Competition Leaf Spring — Right, 3800 lbs (B-Body) $ 119.95
P3690455 Competition Leaf Spring — Left, 3800 lbs (B-Body) $ 119.95
P3690456 Competition Leaf Spring — Right, 3400 lbs (1964-65 Super Stock B-Body) $ 119.95
P3690457 Competition Leaf Spring — Left, 3400 lbs (1964-65 Super Stock B-Body) $ 119.95
P3690460 Competition Leaf Spring -- Rt, 3600 lbs (E-Body Barracuda-Challenger, B-Body w/Shackle Relocation) $ 119.95
P3690461 Competition Leaf Spring -- Left, 3600 lbs (E-Body Barracuda-Challenger, B-Body w/Shackle Relocation) $ 119.95

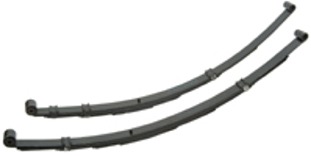

P4120863 Competition Leaf Spring — Right, 2800 lbs (A-Body) $ 104.95
P4120864  Competition Leaf Spring — Left, 2800 lbs (A-Body) $ 104.95
P4120865 Competition Leaf Spring -- Rt, 3300 lbs (E-Body Barracuda-Challenger, B-Body w/Shackle Relocation) $ 104.95
P4120866 Competition Leaf Spring -- Left, 3300 lbs (E-Body Barracuda-Challenger, B-Body w/Shackle Relocation) $ 104.95

With P3412002–03, the rear eye in frame is moved forward; Pinion Snubber is recommended. If using P4120863, vehicle will not be level at standstill.



OVAL TRACK LEAF SPRINGS

Reissued Mopar Performance Kit Car leaf springs are ideal for oval track applications. These springs are widely used on dirt track race cars. The spring rate is 120 lbs. per inch. Front 20.50", Rear 35.0".

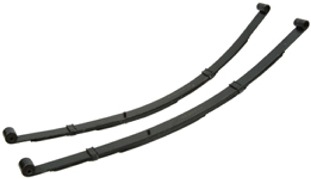

P4529414  Oval Track Leaf Spring — No Arch $ 99.95
P4529415 Oval Track Leaf Spring — 1" Arch $ 99.95





BOLT-IN FRAME CONNECTOR PACKAGES

These prefabricated Packages let you tie the front and rear frame longitudinally on all A-, B- or E-bodied drag cars. They can be welded for additional strength and rigidity. Packages include 2 connectors, brackets and necessary mounting hardware.

P4286868 Bolt-In Frame Connector Package — 108" Wheelbase (1967-76 A-Body) $ 159.95
P4286869 Connector Package — 115"-117" Wheelbase (1966–72 B-Body) $ 159.95
P4286870 Bolt-In Frame Connector Package — 108"-110" Wheelbase (1970-74 E-Body) $ 144.95
P4876658  Bolt-In Frame Connector Package — 111" Wheelbase (1967-76 A-Body) $ 144.95





SOLID LEAF SPRING FRONT EYE BUSHINGS

Contains (2) 1 1/2" aluminum Spring Eye Bushings with steel sleeves. Improves spring reaction by cutting down on rubber deflection. Steel sleeve allows free movement of aluminum bushing. Designed for use with competition leaf springs (super stock).

P4510644 Aluminum Solid Leaf Spring Front Eye Bushing — 1 1/2" Dia., 2.00" Length (A-, B- and E-Body)

$ 94.95





REAR SPRING SHACKLE BUSHINGS

Rear Spring Shackle Bushings for A-, B- or E-body vehicles. These bushings are available in high-performance polyurethane for improved vehicle handling, or factory original equipment heavy-duty rubber for restoration projects. Sold in sets of 8 bushings.

P4452986 O.E. Rubber Rear Spring Shackle Bushings — 7/8" (A-Body) $ 48.95
P4452987  O.E. Rubber Rear Spring Shackle Bushings — 1" (B-Body, E-Body, Super Stock Springs) $ 29.95
P4510643 NEW! Polyurethane Rear Spring Shackle Bushings (A-Body) $ 24.95





REAR AXLE SHIM PACKAGE

These tapered pinion angle shims allow you to adjust the pinion-to-driveshaft angle to the correct 5 to 7 degrees. Package includes 2 each 1°, 2° and 3° shims (6 shims total).

P4529536 Rear Axle Shim Package (8 1/4", 8 3/4" and Dana 60 Axles)

$ 99.95





REAR SPRING FRONT HANGER BRACKET SETS

These straight hangers are 2.0" longer for use with Super Stock springs.

P4120079  Front Hanger Bracket Set — 117" WB (1966-70 Dodge B-Body Sedan and Wagon) $ 79.95
P4120080  Front Hanger Bracket Set -- 108/110/115" WB (1964-65 Mod. B-Body, 1970-74 E-Body, 1971-74 B-Body HT) $ 79.95
P4120081  Front Hanger Bracket Set — 110 WB (1976-80 F-Body, 1980-83 J-Body, 1977-78 M-Body) $ 79.95
P4120105 Front Hanger Bracket Set — 116" WB (1966-70 Plymouth B-Body Sedans, 1971-74 B-Body Wagons) $ 79.95





OFFSET REAR SPRING FRONT HANGER BRACKET SETS

Offset Rear Spring Front Hanger Bracket Sets move the springs in next to the frame. Requires spring seat and offset shackles to be moved. Offers the maximum possible movement inboard for tire clearance without frame rework.

P4120077 Offset Rear Spring Front Hanger Bracket Set (A-Body) $ 144.95
P4120078 Offset Rear Spring Front Hanger Bracket Set (B- and E-Body with Super Stock Springs) $ 79.95





REAR SPRING MOUNTING SEATS

When installing a leaf spring suspension, use these Rear Spring Mounting Seats. These seats work with all leaf springs and all 3" diameter tube rear axles (8 1/4", 8 3/4", 9 1/4", 9 3/4").

P4120074 Rear Spring Mounting Seats $ 19.95





SPRING RELOCATION KITS

Spring Relocation Kits move leaf springs in 3" per side for added tire clearance. Kits mount longitudinally. Requires welding. Includes front hangers, shackles, rear shackle mounts and spring mounting seats.

P4120665AB Spring Relocation Kit (B- and E-Body) $ 162.95
P4876558AB Spring Relocation Kit (A-Body) $ 229.95





SPRING U-BOLT & NUT PACKAGES

For replacement of U-bolts when working on your car's springs. Packages include 4 spring/axle U-bolts and 8 nuts.

P4120611 Spring U-Bolt and Nut Package — 8" $ 63.95
P4120612 Spring U-Bolt and Nut Package — 9" $ 54.95





Click here for REAR SPRING SHACKLE PACKAGES



OFFSET REAR SHACKLE PACKAGES

Offset is approximately 0.80" for use on cars with relocated rear springs. Use with offset front hangers.

P4120076  Offset Rear Shackle Bushings (B- and E-Body) $ 144.95





MANUAL STEERING ADAPTOR

This adapter allows you to convert vehicles equipped with power steering to a manual steering box.

P4510637 Manual Steering Adapter (A-, B- and E-Body)

$ 199.95





URETHANE SUSPENSION BUSHINGS

Tough, durable polyurethane gives these bushings higher durometers than production rubber units. Recommended for circle track, solo and road racing applications. They can also be used in drag racing where they apply.

P4876196 Control Arm Bushing Kit — Front (1962-76 A-Body) $ 65.95
P4876197  Front Eye Leaf Spring Bushing Kit — Standard, Rear (A-, B- and E-Body) $ 65.95
P5007087 Leaf Spring Bushing Kit — Rear (1965-72 B-Body except 426/440)  $ 67.95
P5007088  Leaf Spring Bushing Kit — Rear (1965-72 426/440 B-Body) $ 67.95
